FANCO

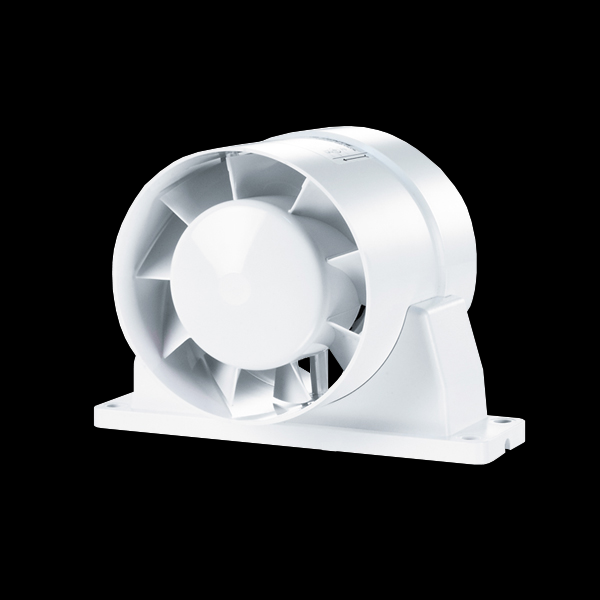

VKO AXIAL SERIES

Axial Inline Exhaust Fan in a range of sizes

SKU: EXVUVKO*

* Denotes Model Size

The Fanco VKO Axial Series is designed to supply and exhaust ventilation in rooms requiring low to medium airflow at low air resistance

pdf-spec-sheet
VKO AXIAL SPEC SHEET
PRINTER FRIENDLY VERSION
pdf-spec-sheet
FANCO VENTILATION RANGE BROCHURE
PRINTER FRIENDLY VERSION



EUROPEAN MADE
QUALITY EUROPEAN MANUFACTURED MOTOR
IPX4
MOTOR INGRESS PROTECTION RATING
2 YEAR
AUSTRALIAN REPLACEMENT WARRANTY

EXTRACTION CAPACITY

The ventilation flow rate can be referred to either in l/s or m³/h. The Fanco VKO Axial series offers powerful ventilation with the exact amount changing between model sizes. View the litres per second or cubic meters per hour capacity of each model below.

MODEL HIGH SPEED (M3/HR)
VKO 100 135
VKO 125 243
VKO 150 358
MODEL LOW SPEED (L/S)
VKO 100 37.53
VKO 125 67.55
VKO 150 99.52

DIMENSIONS (MM)

VKO 100 VKO 125 VKO 150
D 100 125 150
D1 104 129 154
L 91 93 108
L1 31 31 46
H 114 139 163
B 160 185 200
B1 144 169 184
L2 45 45 45
L3 29 29 29

PRESSURE CURVES

NOISE LEVEL

The VKO Axial provides continuous ventilation at a low noise level.

Sound levels are rated in sones where the lower the rating number, the quieter the fan. Typical economy fans are rated at about 4.0 sones or more while any fan rated 1.0 sones or less is very quiet. Fan noise is affected by the speed and profile or shape of the blade. View the dBA of each model below.

MODEL Noise level (dBA)
VKO 100 38
VKO 125 39
VKO 150 44
GIF-White (2)

POWER CONSUMPTION

The Fanco VKO Axial Inline Exhaust fan is built with quality components and with efficiency in mind.

The fans consumption changes depending on the model size. View the varied Watt amounts below and see how much it would cost to run in your home

MODEL HIGH SPEED (W)
VKO 100 16
VKO 125 24
VKO 150 29
icon2

HOW DO I KNOW WHAT SIZE FAN MY ROOM REQUIRES?

Find the correct fan to suit your rooms size

Icon1

HOW MUCH DOES THE VKO COST TO RUN?

*Calculations based on the data provided by Finder.com.au for 2022 to derive average prices per State for the cost of electricity per kilowatt-hour. Calculator is not indicative of exact running costs.

APPLICATION EXAMPLES

VKO AXIAL INLINE EXHAUST FAN RANGE

VIEW ALL VKO AXIAL MODELS:

243 m3/hr

Axial VKO In Line Fan 125mm

135 m3/hr

Axial VKO In Line Fan 100mm

WANT TO BUY ONE? VIEW STOCKISTS
