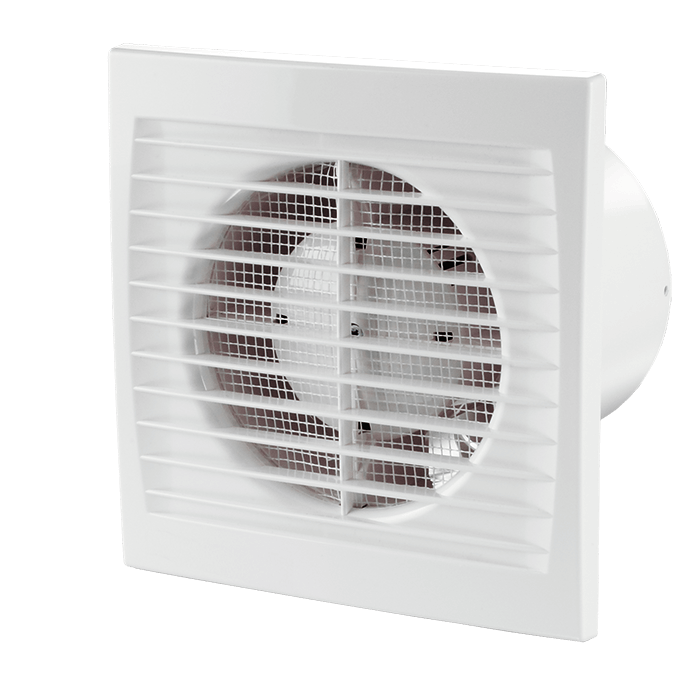

FANCO

S SERIES

Small European Made Motor Domestic Fan

SKU: EMVUSS*

* Denotes Model Size

The S Series features a quality european made motor and has a simple design. The fan is designed for continuous operation and can be installed in either a ceiling or wall and comes with a back draft shutter to stop warm air escaping or external air coming through the fan.

FANCO S SERIES SPEC SHEET

PRINTER FRIENDLY VERSION

EUROPEAN MADE

QUALITY EUROPEAN MANUFACTURED MOTOR

IP34

MOTOR INGRESS PROTECTION RATING

2 YEAR

AUSTRALIAN REPLACEMENT WARRANTY

EXTRACTION CAPACITY

The ventilation flow rate can be referred to either in l/s or m³/h. The Fanco S Series offers continuous ventilation ranging in amount between model sizes. View the litres per second or cubic meters per hour capacity of each model below.

M3/HR
L/S

MODEL	HIGH SPEED (M3/HR)
S Series 100	95
S Series 125	180
S Series 150	292

MODEL	HIGH SPEED (L/S)
S Series 100	26.41
S Series 125	50.04
S Series 150	81.17

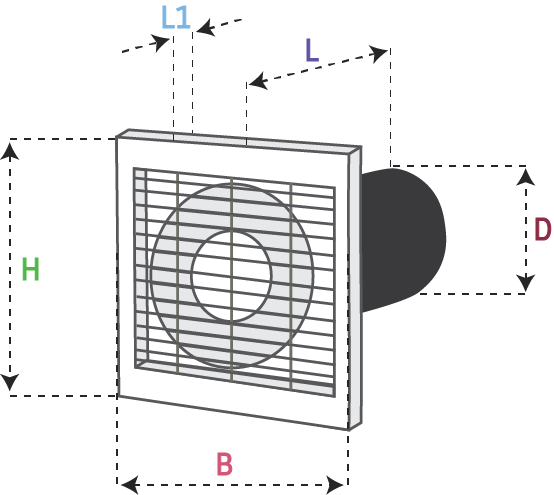

DIMENSIONS (MM)

MODEL	D	B	L	L1	H
S Series 100	100	150	108	12	120
S Series 125	125	176	114	13	140
S Series 150	150	205	132	14	165

SUITABLE INSTALLATION LOCATIONS

Exhaust fans vary in installation location with some fans having the option to be mounted in several locations.

The Fanco S Series is suitable for ceiling or wall mounting. It can however be connected to duct so that air may be exhausted out of the house

Wall

Window

Ceiling

NOISE LEVEL

Sound levels are rated in sones where the lower the rating number, the quieter the fan. Typical economy fans are rated at about 4.0 sones or more while any fan rated 1.0 sones or less is very quiet. Fan noise is affected by the speed and profile or shape of the blade. View the dBA of each model below.

MODEL	Noise Level at 3M (dba)
S Series 100	34
S Series 125	35
S Series 150	38

POWER CONSUMPTION

The Fanco S Series Exhaust fan is built with quality components and with efficiency in mind.

The fans consumption changes depending on the model size. View the varied Watt amounts below and see how much it would cost to run in your home

MODEL	Max Motor Wattage (w)
S Series 100	14
S Series 125	16
S Series 150	24

HOW DO I KNOW WHAT SIZE FAN MY ROOM REQUIRES?

Find the correct fan to suit your rooms size

HOW MUCH DOES THE S SERIES FAN COST TO RUN?

*Calculations based on the Australian Energy Market Commission 2017 Electricity Price Trends Report to derive average prices per State for the cost of electricity per kilowatt-hour. Calculator is not indicative of exact running costs.
