VKM SERIES

Centrifugal Inline Exhaust Fan in a range of sizes

SKU: EXVUV***

* Denotes Model Size

The Fanco VKM Series is designed to supply and exhaust ventilation in rooms requiring high pressure and powerful airflow

VKM RANGE SPEC SHEET

PRINTER FRIENDLY VERSION

FANCO VENTILATION RANGE BROCHURE

PRINTER FRIENDLY VERSION

GERMAN MADE

HIGH QUALITY BALL BEARING MOTOR

POWERED BY

BLAUBERG MOTOREN

IPX4

MOTOR INGRESS PROTECTION RATING

2 YEAR

AUSTRALIAN REPLACEMENT WARRANTY

EXTRACTION CAPACITY

The ventilation flow rate can be referred to either in l/s or m³/h. The Fanco VKM series offers very powerful ventilation ranging between model sizes. View the litres per second or cubic meters per hour capacity of each model below.

M3/HR
L/S

MODEL	HIGH SPEED SPEED (M3/HR)
VKM 100	270
VKM 125	355
VKM 150	580
VKM 200	1100
VKM 250	1310
VKM 315	1880

MODEL	HIGH SPEED SPEED (L/S)
VKM 100	75.06
VKM 125	98.69
VKM 150	161.11
VKM 200	305.80
VKM 250	364.18
VKM 315	522.64

DIMENSIONS (MM)

MODEL	D	D1	B	B1	L	L1	L2	L3
VKM 100	98	254	298	258	205	20	25	30
VKM 125	123	254	298	258	205	20	25	30
VKM 150	149	345	395	355	200	20	20	40
VKM 200	198	344	390	350	240	25	29	40
VKM 250	248	344	390	350	249	25	31	40
VKM 315	314	404	454	414	260	25	40	40

PRESSURE CURVES

NOISE LEVEL

Sound levels are rated in sones where the lower the rating number, the quieter the fan. Typical economy fans are rated at about 4.0 sones or more while any fan rated 1.0 sones or less is very quiet. Fan noise is affected by the speed and profile or shape of the blade. View the dBA of each model below.

MODEL	HIGHEST NOISE LEVEL AT 3M (dBA)
VKM 100	47
VKM 125	47
VKM 150	45
VKM 200	51
VKM 250	52
VKM 315	54

POWER CONSUMPTION

The Fanco VKM Centrifugal Exhaust fan is built with quality components and with efficiency in mind.

The fans consumption changes depending on the model size. View the varied Watt amounts below and see how much it would cost to run in your home

MODEL	HIGH SPEED (W)
VKM 100	73
VKM 125	75
VKM 150	100
VKM 200	193
VKM 250	194
VKM 315	296

HOW DO I KNOW WHAT SIZE FAN MY ROOM REQUIRES?

Find the correct fan to suit your rooms size

HOW MUCH DOES THE VKM FAN COST TO RUN?

*Calculations based on the data provided by Finder.com.au for 2022 to derive average prices per State for the cost of electricity per kilowatt-hour. Calculator is not indicative of exact running costs.

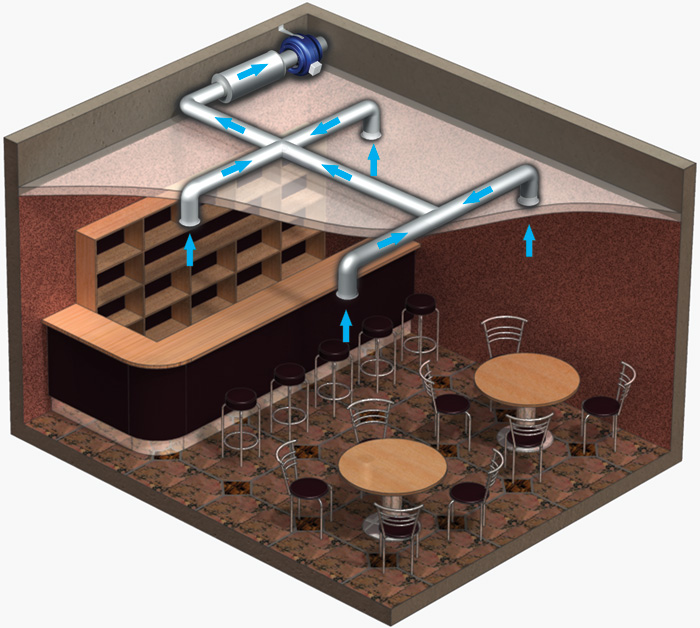

APPLICATION EXAMPLE

LEAD & PLUG MODELS AVAILABLE

SKU: W-EXVUV***-LP

* Denotes Model Size

All models of the VKM are also available with a lead and plug. These models come with a lead and plug, which allows for “Do-It-Yourself” installation. Please keep in mind that choosing this option may limit your choices of controllers as many of them require hard wiring by an electrician.
