Dynamic Series

A stylish and functional choice for effective ventilation without compromising on aesthetics

A modular exhaust fan featuring a choice of decorative covers to suit your interior design.

DYNAMIC SERIES INSTALLATION MANUAL

PRINTER FRIENDLY VERSION

Dynamic SERIES SPEC SHEET

PRINTER FRIENDLY VERSION

TECHNICAL DOWNLOADS

AND OTHER ARCHITECTURAL RESOURCES

WANT TO BUY ONE? VIEW STOCKISTS

MOTOR INGRESS

PROTECTION RATING

HIGH

MAXIMUM AIRFLOW*

*Dynamic 150 model

QUIET OPERATION

Noise Level at 3M

Versatile

INSTALLATION

AUSTRALIAN

REPLACEMENT WARRANTY

European Built Fan

EUROPEAN MADE

QUALITY EUROPEAN MANUFACTURED MOTOR

Made in the EU, this exhaust fan reflects high manufacturing standards and a strong focus on energy efficiency. For Australian buyers, that means peace of mind—knowing the product is built to last and performs reliably in demanding conditions.

ip24 rated

IP24 Rated for Bathroom Use

Protected against water splashes and solid objects, ideal for safe installation in moisture-prone areas.

Built for Protection

Designed with an IP24 rating, this fan is safeguarded against solid objects and splashes of water—making it a dependable choice for bathrooms and other moisture-prone environments.

Powerful Extraction Capacity

Despite its compact form, the Fanco Dynamic offers a strong, efficient airflow output that belies its size. Its thoughtful design ensures reliable performance with minimal energy use—ideal for spaces where discretion and efficiency matter most.

M3/HR
L/S

Model	High Speed (m3/hr)
Dynamic 100	100
Dynamic 125	180
Dynamic 150	280

Model	High Speed (L/S)
Dynamic 100	27.78
Dynamic 125	50
Dynamic 150	77.78

The ventilation flow rate can be referred to either in l/s or m³/h. The Fanco Dynamic series offers very powerful ventilation ranging between model sizes. View the litres per second or cubic meters per hour capacity of each model above.

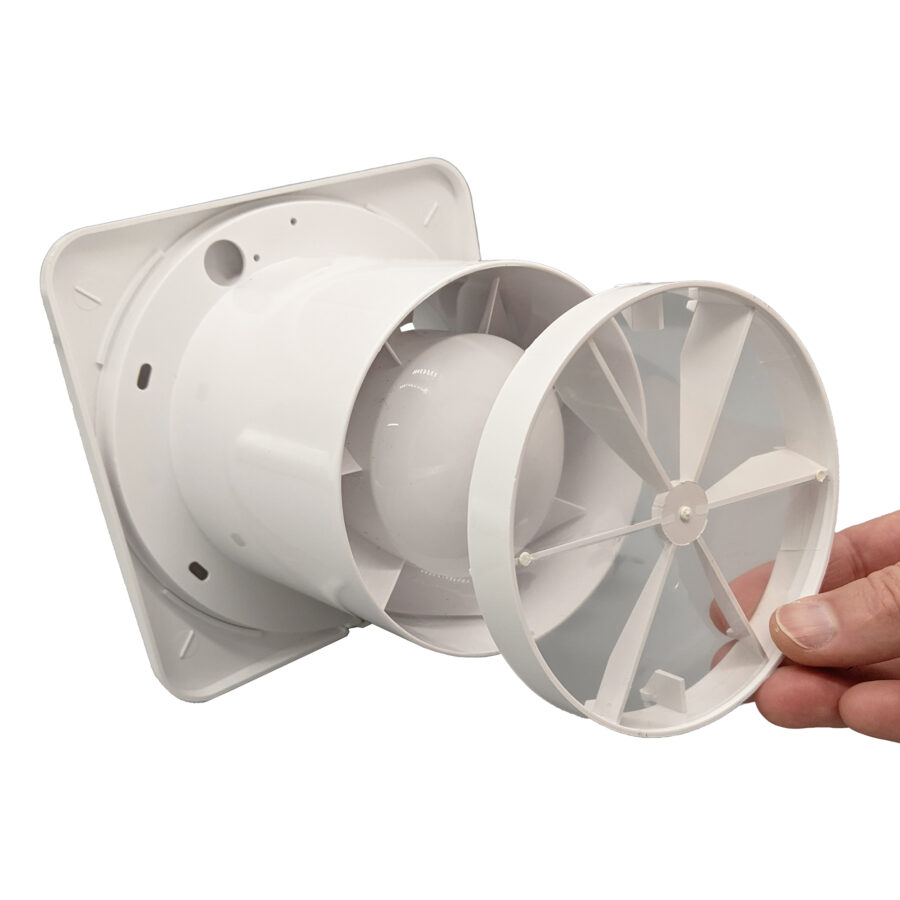

Built in thin-transparent draft shutter

100 model shown

The Dynamic includes a thin-transparent draft shutter, which helps prevent cold air from coming back into the room through the fan duct when the fan is off.

Four Covers
to choose from:

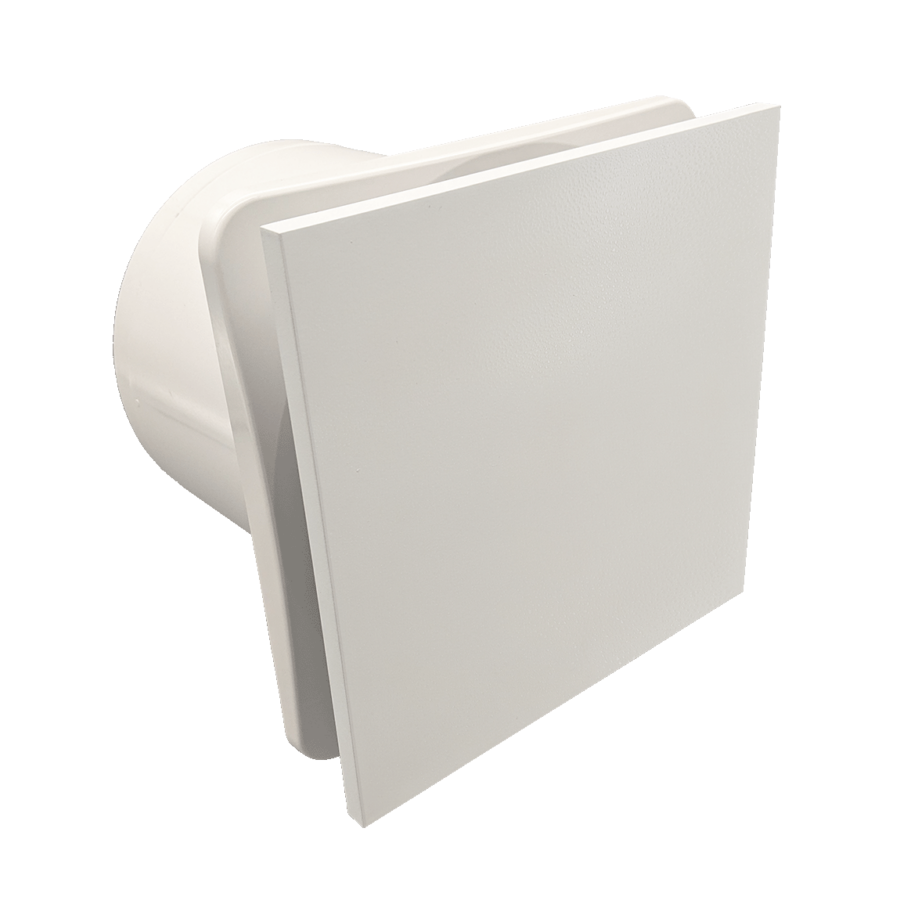

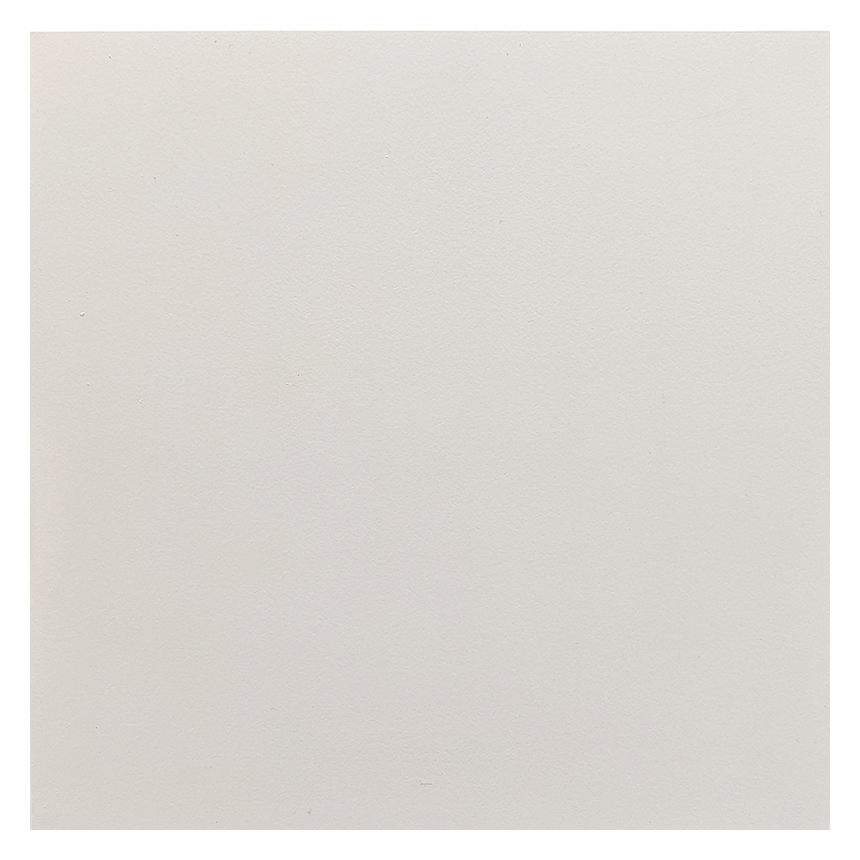

Matte White Cover

Textured, Minimal, Timeless.

Available on 100 model, 125 model & 150 model

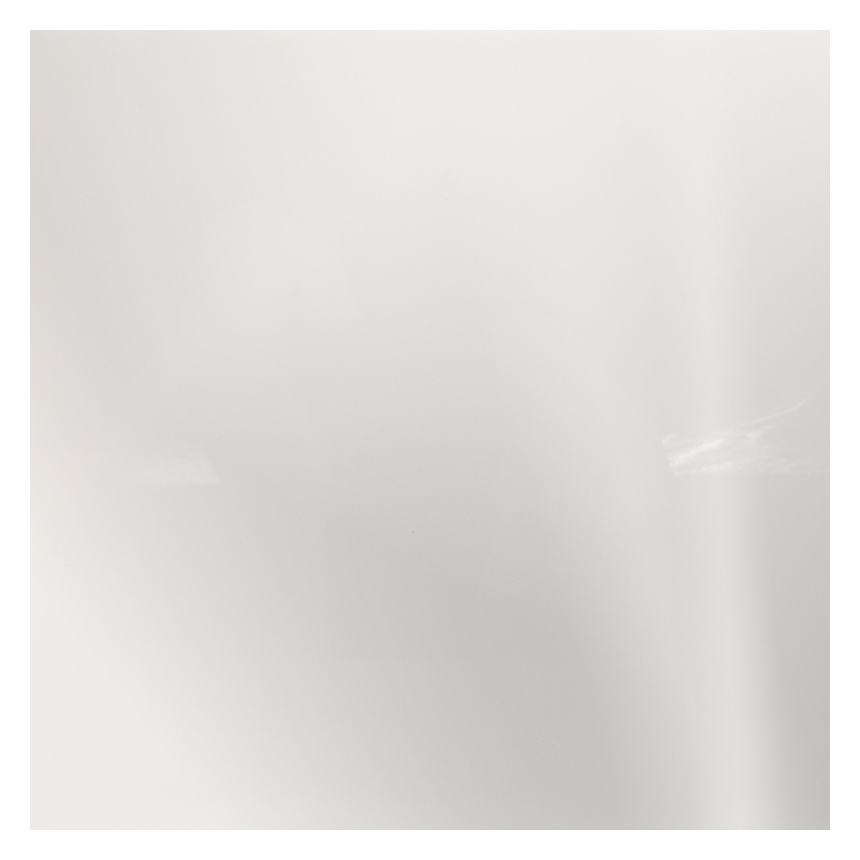

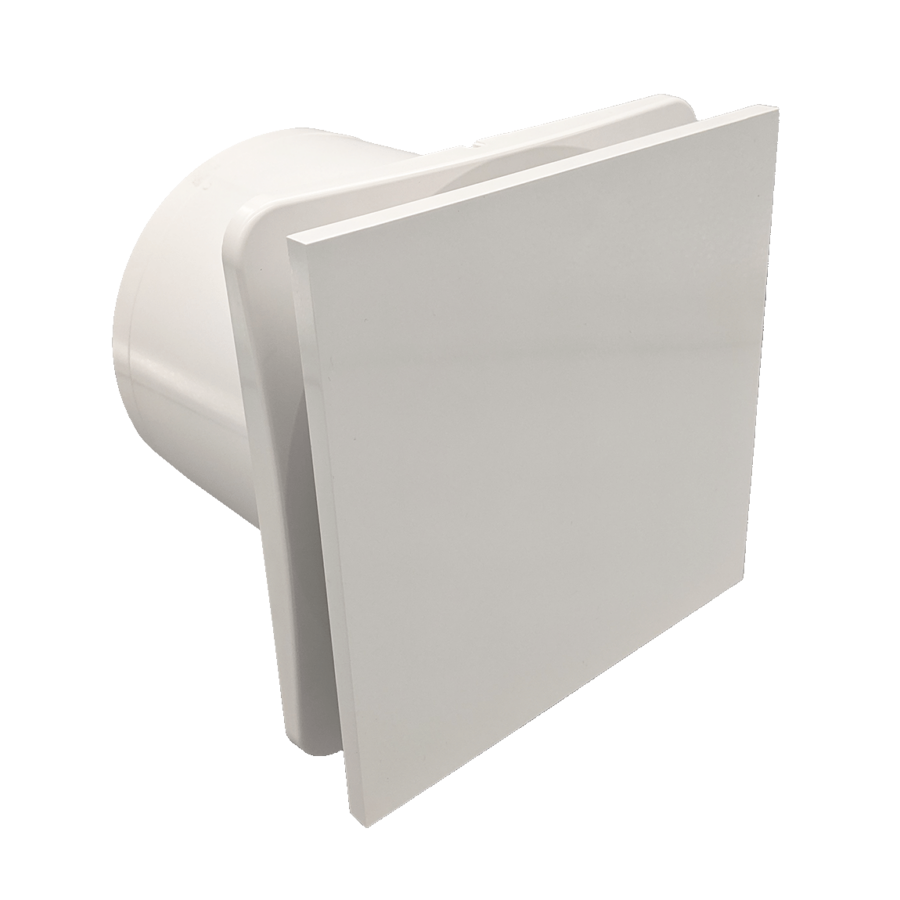

Gloss White Cover

Reflective, Bright, Sophisticated.

Available on 100 model, 125 model & 150 model

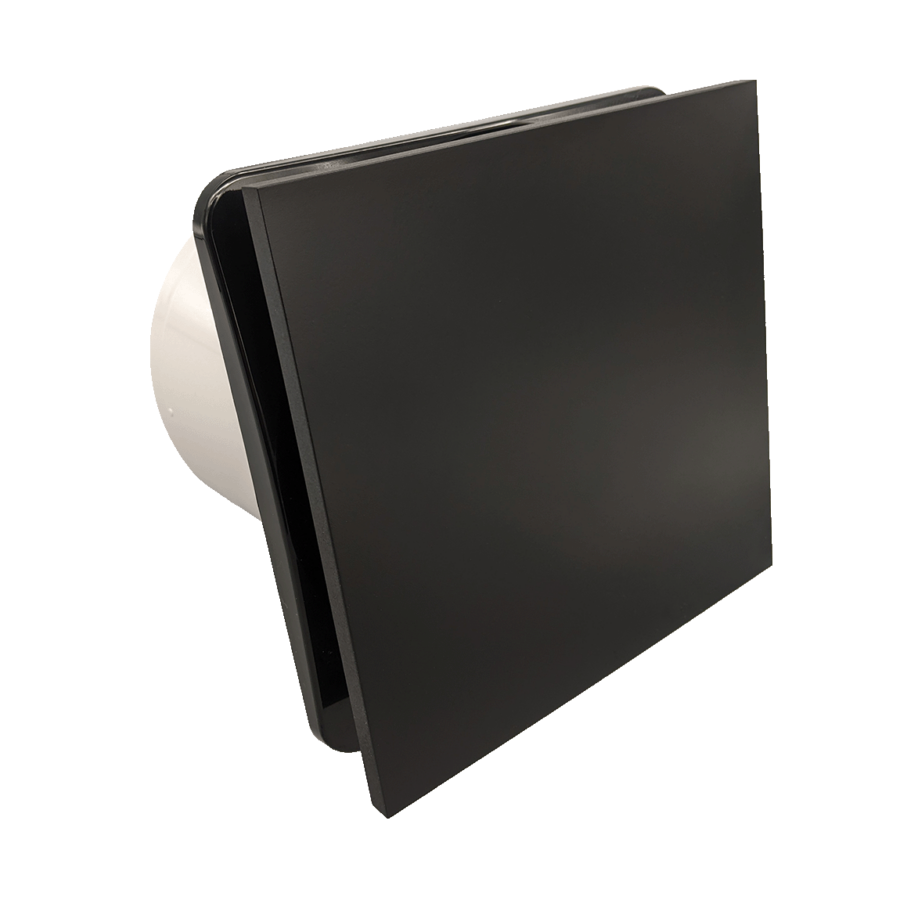

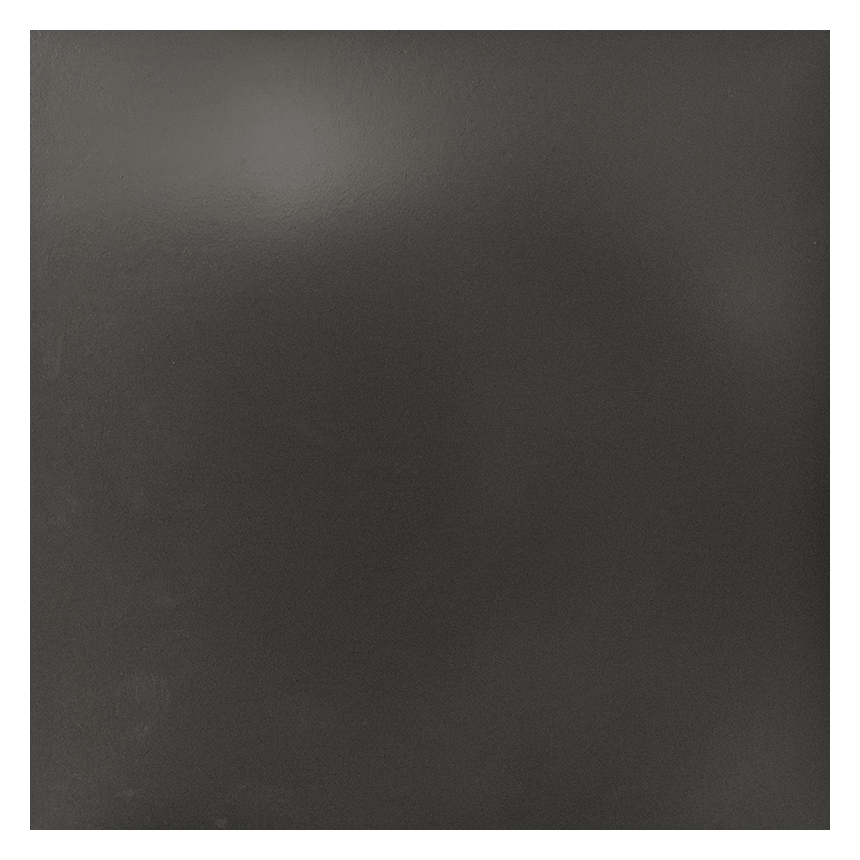

Matte Black Cover

Unobtrusive, Classy, Modern.

Available only on 150 model

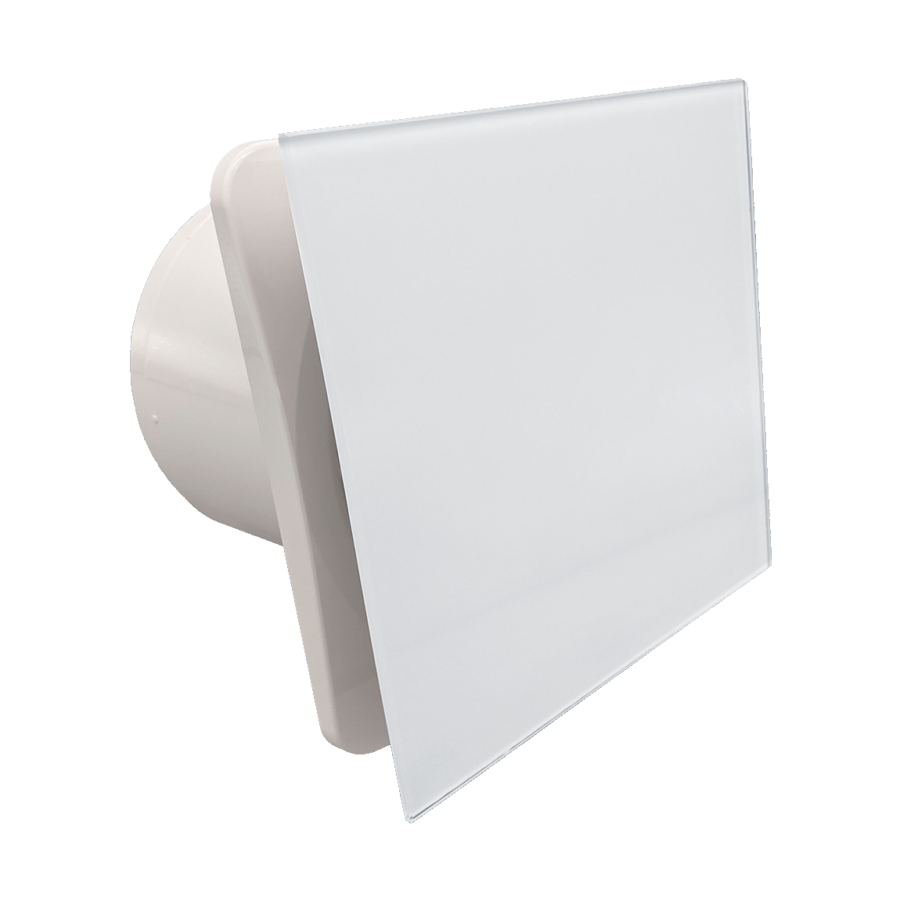

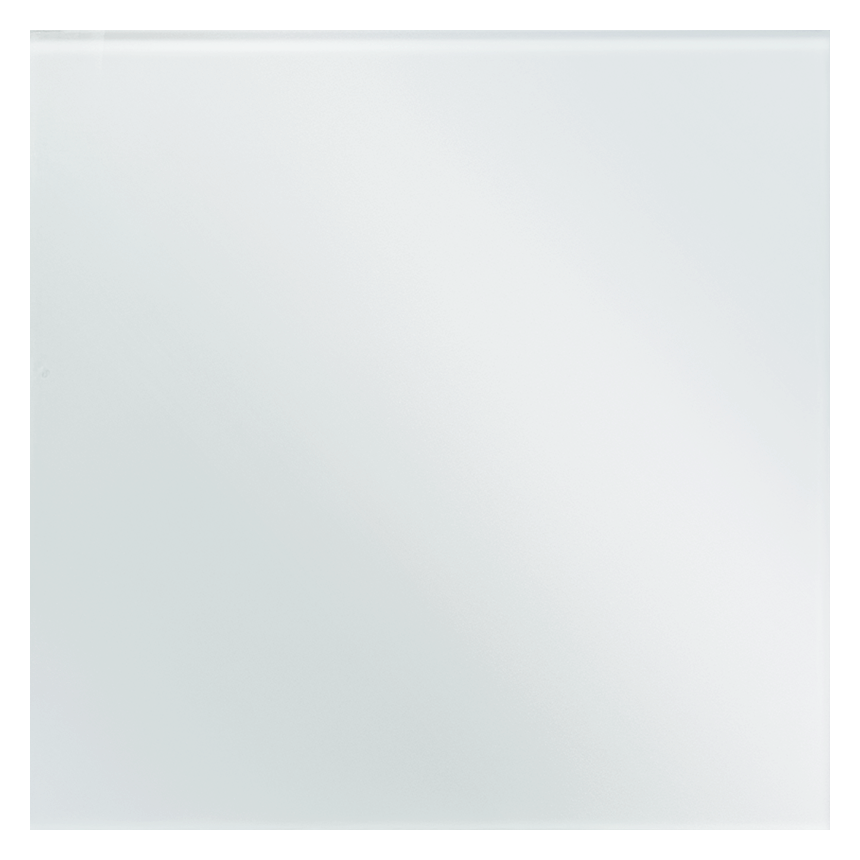

Glass White Cover

Refined, Mature, Everlasting

Available only on 150 model

Power

Consumption

The Fanco Dynamic Exhaust fan is built with quality components and with energy-efficiency in mind.

The fans consumption changes depending on the model size. View the varied Watt amounts below and see how much it would cost to run in your home.

MODEL	Max Motor wattage (w)
Dynamic 100	14
Dynamic 125	16
Dynamic 150	24

How do I know what

size fan my room requires?

Find the correct fan to suit your rooms size.

Click Here

How much does the Dynamic cost to run?

*Calculations based on the Australian Energy Market Commission 2017 Electricity Price Trends Report to derive average prices per State for the cost of electricity per kilowatt-hour. Calculator is not indicative of exact running costs.
