555 m3/hr

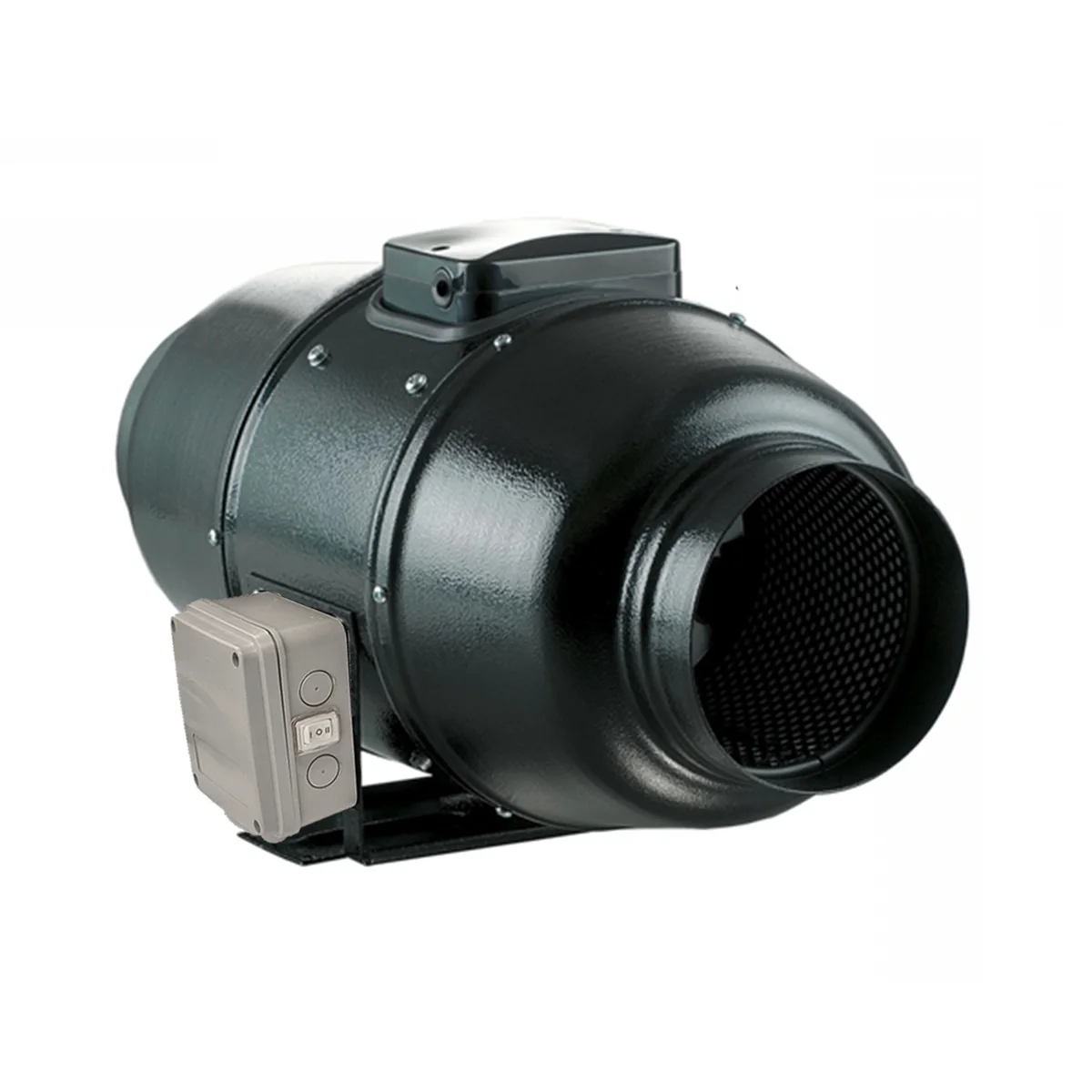

TT Silent Mixflow Inline Fan 150mm

Precision engineered sound insulated casing. The external case is made from a polymer coated steel with an internally insulated layer of 50mm mineral wool. This results in a considerably lower decibel rating in comparison to other models.

Featuring a single phase two speed motor this fan Includes a built in 3 position switch that allows users to alternate between low and high speed. Comes with lead and plug and has IPX4 ingress protection rating.

BUY NOW - VIEW STOCKISTS
SKU: EXVUTTS150RV Categories: , , ,
Description
EUROPEAN MADE
QUALITY EUROPEAN MOTOR
IPX4
MOTOR INGRESS PROTECTION RATING
2 YEAR
AUSTRALIAN REPLACEMENT WARRANTY

APPLICATION

The Fanco TT Silent Series is designed to supply and exhaust ventilation in rooms requiring high pressure and powerful airflow at an extremely low noise level. The fans are compatible with round duct with models available in 150mm or 200mm.

ABOUT THE MOTOR

The Fanco TT Silent Exhaust fan is built with quality components and features a reliable low watt electric motor. The motor is equipped with a single phase motor with two selectable speeds (Low Speed – 405m3/hr / High Speed – 555m3/hr). The motor is also IPX4 rated.

DOWNLOAD TT SILENT SPEC SHEET VIEW ALL AVAILABLE SIZES
Additional information
Voltage

230v
Power

52w
Current

0.23A
Capacity (m3/hr)

555
Capacity (l/s)

154.29
Capacity (CFM)

326.89
RPM

2645
Noise Level

33 dB(A)
IP Rating

IPX4

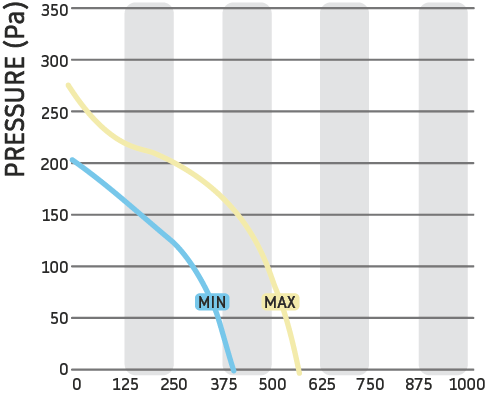

Pressure Curve

Pressure Curve

Dimensions

Dimensions

MODEL D B B1 L H
TT Silent 150 147 247 274 580 260
TT Silent 200 198 293 386 550 295
All TT Silent Sizes

All TT Silent Sizes

555 m3/hr

TT Silent Mixflow Inline Fan 150mm

Product Enquiry

Product Enquiry

Error: Contact form not found.

Running Cost Estimator

Running Cost Estimator

Icon1

HOW MUCH DOES THE TT SILENT COST TO RUN?

*Calculations based on the Australian Energy Market Commission 2017 Electricity Price Trends Report to derive average prices per State for the cost of electricity per kilowatt-hour. Calculator is not indicative of exact running costs.
