555 m3/hr

VKM Centrifugal Fan 150mm

The fan casing is made of steel with a polymeric coating – a superior structure to plastic models. It is available in 6 sizes, and is a long life, continuous rated motor with an IPX4 rating.The impeller with backward curved blades is powered by the single-phase motor with external rotor and overheating protection with automatic restart.

The fan can be used with the VKM speed controller (See accessories below).

BUY NOW - VIEW STOCKISTS

Description

GERMAN MADE

HIGH QUALITY BALL BEARING MOTOR

POWERED BY

BLAUBERG MOTOREN

IPX4

MOTOR INGRESS PROTECTION RATING

2 YEAR

AUSTRALIAN REPLACEMENT WARRANTY

APPLICATION

The Fanco VKM series are designed for supply and exhaust ventilation of premises requiring high pressure and powerful airflow. The fans are compatible with round duct with models from 100mm to 315mm. The fan casing is made of steelwith polymeric coating.

ABOUT THE MOTOR

All motors are equipped with a single phase motor.All motors have thermal overheating protection, ball bearings which ensure a motor life expectancyof 40,000 hours at non stop operation. The motor is IPX4 rated

DOWNLOAD VKM SPEC SHEET VIEW ALL AVAILABLE SIZES

Additional information

Voltage	220 – 240v
Power	100w
Current	0.45A
Capacity (m3/hr)	580
Capacity (l/s)	161.11
Capacity (CFM)	341.37
Noise Level	45 dB(A)
Max Air Temp	55C
IP Rating	IPX4

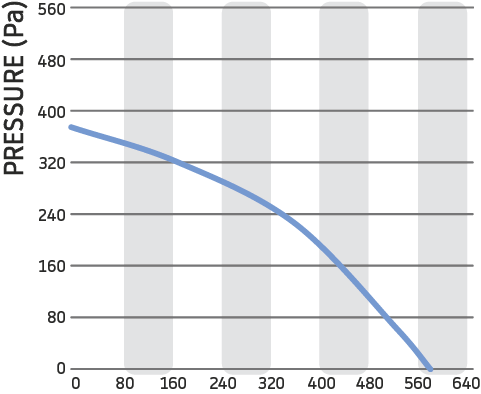

Pressure Curve

Dimensions

MODEL	D	D1	B	B1	L	L1	L2	L3
VKM 100	98	254	298	258	205	20	25	30
VKM 125	123	254	298	258	205	20	25	30
VKM 150	149	304	349	309	220	25	25	30
VKM 200	198	344	390	350	240	25	29	40
VKM 250	248	344	390	350	249	25	31	40
VKM 315	314	404	454	414	260	25	40	40
